Pit Mining Motorised Reels Drum For Crane Cable Reel High Current Reel Drum -40℃~+45℃
Detalhes do produto:
| Lugar de origem: | Shenzhen, Guangdong |
| Marca: | JARCH |
| Número do modelo: | JSR-CRM200-56P25-D48-65 |
Condições de Pagamento e Envio:
| Quantidade de ordem mínima: | 1 conjunto |
|---|---|
| Preço: | US$10000~60000/SET |
| Detalhes da embalagem: | Caixa de madeira |
| Tempo de entrega: | 70 dias |
| Termos de pagamento: | T/T |
| Habilidade da fonte: | 50 conjuntos/mês |
|
Informação detalhada |
|||
| Padrão de instalação: | Enrolamento horizontal | Modo de comunicação: | Comunicações de rede RS485 ou TC/IP |
|---|---|---|---|
| material da mangueira: | PVC | Cor do cabo: | Preto/azul/vermelho |
| Tipo: | Tipo motorizado | Embalagem de produtos: | De madeira |
| Tipo final feminino: | CEI | Item Relacionado: | Carretel de cabo comum de fibra óptica |
| Mecanismo de travamento de cabo: | Retração automática | Temp: | 150 ° F. |
| Material do carretel: | Plástico/metal | Bocal de pulverização incluído: | Sim |
| Medição de cabo: | PVC (cor vermelha) | Jaqueta: | Borracha |
| Uso: | Mineração de poço | ||
Descrição de produto
JARCH Pit Mining Motorised Reels Drum For Crane Cable Reel High Current Reel Drum -40℃~+45℃
Product Description
Motorised Reels drum for Bucket Wheel Stacker Reclaimer
| Power mobile equipment with motorised reels to ensure the safe and reliable transmission of power, data and fluids. |
Reel Specifications and Dimensions
Feature

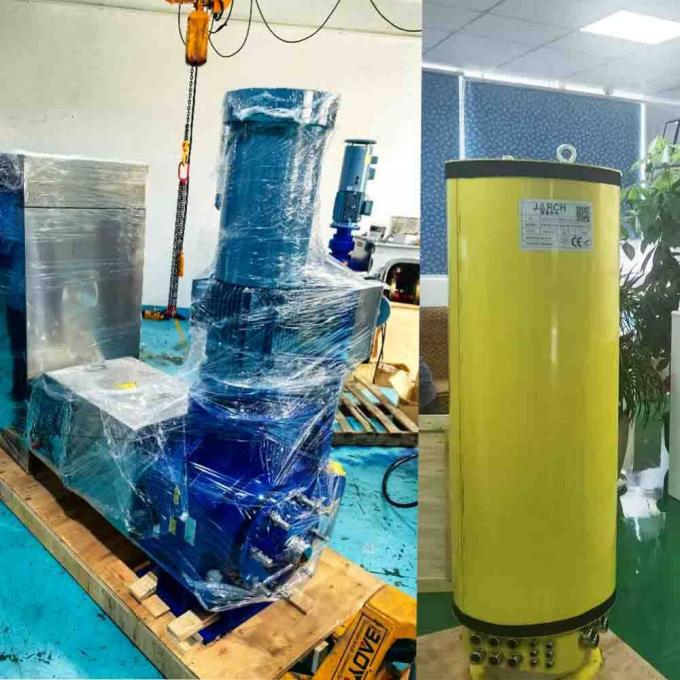

1. Motor (with drive) Standard squirrel cage or torque motors, according to IEC Norms. Hydrodynamic cable reels can be supplied with a pneumatic or hydraulic motor.
2. Gearbox or Torque Unit Sever gearboxes and eight torque unites are available with variable output torque from 10-1200daNm.
3. Collector Standard sizes of collectors are available for power and signals. Current ratings vary from 10 to 2400Amp, voltages up to 30kV. We also manufacture customised collectors exceeding the above parameters.

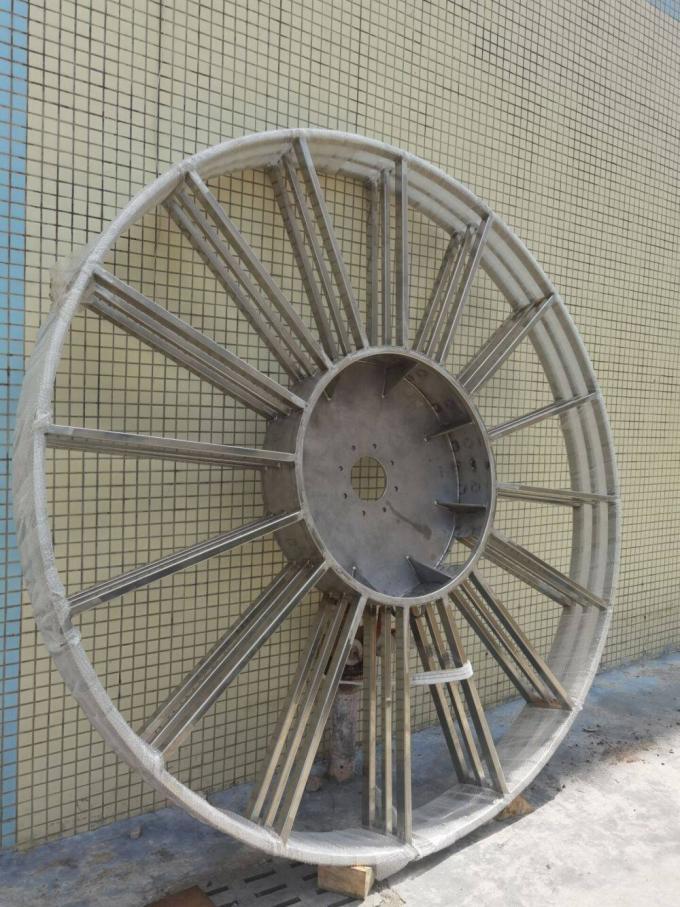

4. The drums are composed of standard elements and can easily be adjusted to required widths. Standard drum diameters range from 300mm to 8700mm.
Applications
The JARCH product range includes cost-efficient motorised reels systems produced in high volume series and relatively small volume projects. We support customers from design to commissioning of products and systems ready for use in the harshest operating and ambient conditions.
JARCH manufactures motorised reels for horizontal, vertical, continuous and intermittent use. We provide tailored solutions for LV or MV applications, with or without fibre optics, for various applications.
Ports & Maritime

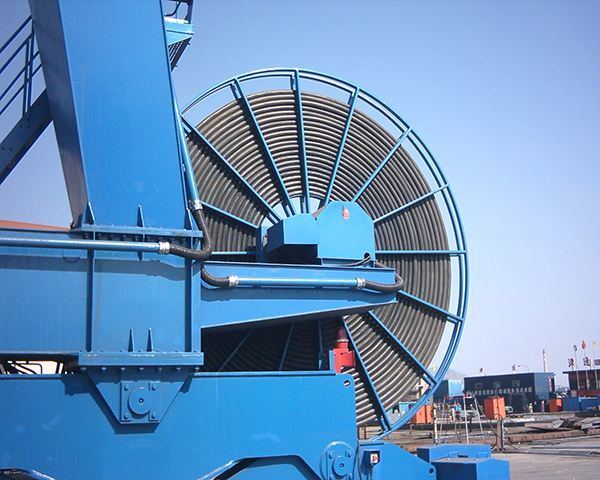

JARCH motorised cable reels are integrated in all potential ports crane applications, at the quay, at the yard or at the intermodal terminal.
Typical applications:
-
Ship-to-shore (STS) cranes.
-
Automatic stacking cranes (ASC).
-
Rail mounted gantry (RMG) cranes.
-
Electric rubber-tyred gantry (E-RTG).
-
Ship loaders.
-
ShorePower systems.
Mining & Tunnelling
JARCH powers a broad range of mobile equipment operating in underground and open pit mining, and tunnelling applications, including:
-
Tunnel boring machines (TBM).
-
Face drilling machines.
-
Stacker-reclaimers.
-
Electric rope shovels.
Industry
JARCH engineers indoor and outdoor mobile construction machines, travelling platforms and overhead cranes operating in a variety of sectors such as:
-
Construction.
-
Steel manufacturing.
-
Waste water.
-
Chemical plant.
-
Nuclear power plant.
-
Theatres.
-
