Tethered Lighting Drones Long Time Tethered Uav System and Power Station with Cable Supply Power Kit

Our latest version, we are now doing intelligent retracting, automatic closed loop, reel reel speed and aircraft speed is automatic matching, as long as the winch is powered on, the aircraft take off ---- winch synchronous retracting, aircraft descent ---- winch synchronous retracting, all the retracting process winch are their own control, You don't have to do it manually.

JARCH Plus Tethered Power System supporting high-voltage compensation and optical fibre transmission is designed to provide unlimited, reliable and redundant power source for drones, overcome the limitation of flight duration and payload capacity. JARCH Plus tethered power system coupled with commercial drones can be applied in many different fields by loading different equipment. Mainly used as relay station, long time observation station in the air etc.

Tethered lighting drones long time tethered uav system and power station with cable supply power kit

UAV Agras 10L Drone To Fumigate For Plant Irrigation Protection Agricultural Drone Seed Fertilizer

Four-Axis 4-Rotor UAV FOC Drive 3090 Folding Propeller Tethered Drone

①Main drone

Model:JC-XL4-4000W

Vehicle category: Four-axis 4-rotor UAV
Power system: FOC drive
Wind resistance level: Level 5
Aircraft material: composite material, carbon fiber
Installation method quick release
Motor: JL-X8120 100KV
ESC: 100A
Propeller: 3090 folding propeller
Take-off and landing mode: manual take-off and landing, fully autonomous take-off and landing
Maximum rising speed 5m/s
Maximum descending speed 5m/s
Maximum wind resistance level 6
Maximum flight altitude 4500m
Maximum ascending speed 10m/s (windless environment)
Maximum tethered flight time 720 minutes
Flight speed: 0-20M/S
Cruising speed: 12M/S
Maximum take-off weight: 25kg
Maximum safe load: 6kg
Maximum flight altitude 110 meters
Hover accuracy vertical: ±0.5m (when GPS positioning is working normally)
Horizontal: ±1m (when GPS positioning is working normally)
Satellite positioning module GPS/GLONASS or BDSS/GLONASS
Waterproof level: Moderate rain. The body can be washed with water.
Expansion channels can support the expansion functions of various models

② 4000W Ariborne Power

380-850V input 48V output 4000W
Size: 160×128×58.5mm
Weight: about 1.3kg
Working temperature: -20°--55°
Optional -40°--55°

③

7KW Ground Power

④

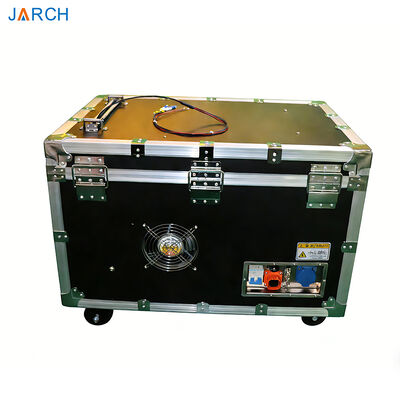

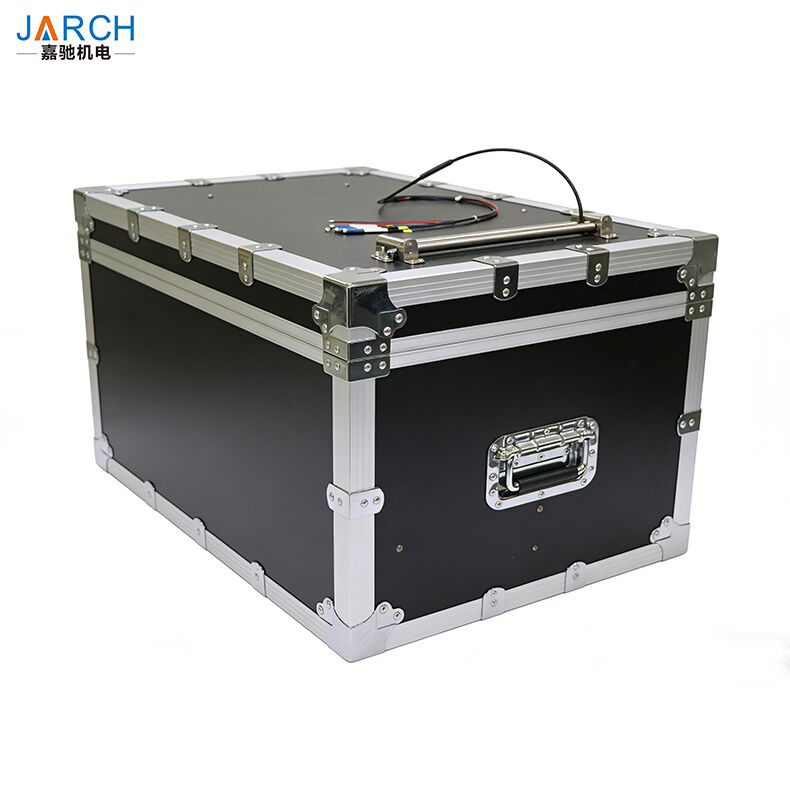

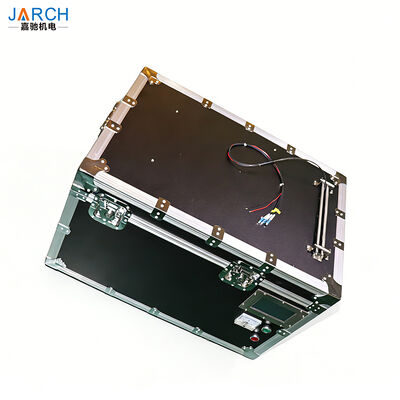

Tethered Box

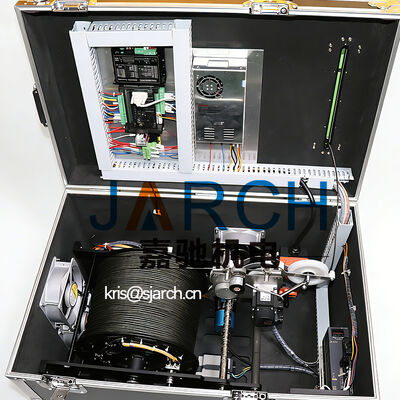

100 meters pure electric, intelligent retractable winch, including built-in ground power supply

⑤Tethered Cable

2-power ultra-light aviation composite cable, 100 meters, 6A

⑥Remote Controller H12Pro

Number of channels 12
Working voltage 4.2V
Transmit power 17.5dBm
Frequency band 2.400-2.483GHz
Frequency Hopping OFDM Frequency Hopping
Upgrade APP online upgrade
Weight 660g
Size 190*152*94mm
Battery 10000mAh
Battery life 6-20 hours
Charging interface TYPE-C
Modulation method CCK,DQPSK.DBPSK
Transmission rate 6.5-144Mbps
Transmit power 2.4G

16.0±1.5dBm&<-15dB@11b 11Mbps;

14.0±1.5dBm&<-25dB@11g 54Mbps
13.0±1.5dBm&<-28dB@11n-HT20-2.4G-MCS7;

13.0±1.5dBm&<-28dB@11n-HT40-2.4G-MCS7

Receiving sensitivity 2.4G:

1Mbps:-94dBm@PER<8%;

11Mbps:-85dBm@PER<8%;

54Mbps:-70dBm@PER<10%;

HT40-MCS7-2.4G:-65dBm@PER<10%

⑦ Battery

Capacity 8000mAh 12S 44.4V
Size 230*126*67mm
Weight 2550g

⑧ Charger

AC input: 100-240V
Charging power: AC220V 1500W
AC120V 600W
Discharge power: 60W
Battery type: LiPo/LiHV
Number of battery cells: 12S
Charging current: fast charge mode 25A (single channel)
Slow charge mode 16A (single channel)
Working mode: fast charge, slow charge, maintenance mode
Size:294x135x200mm
